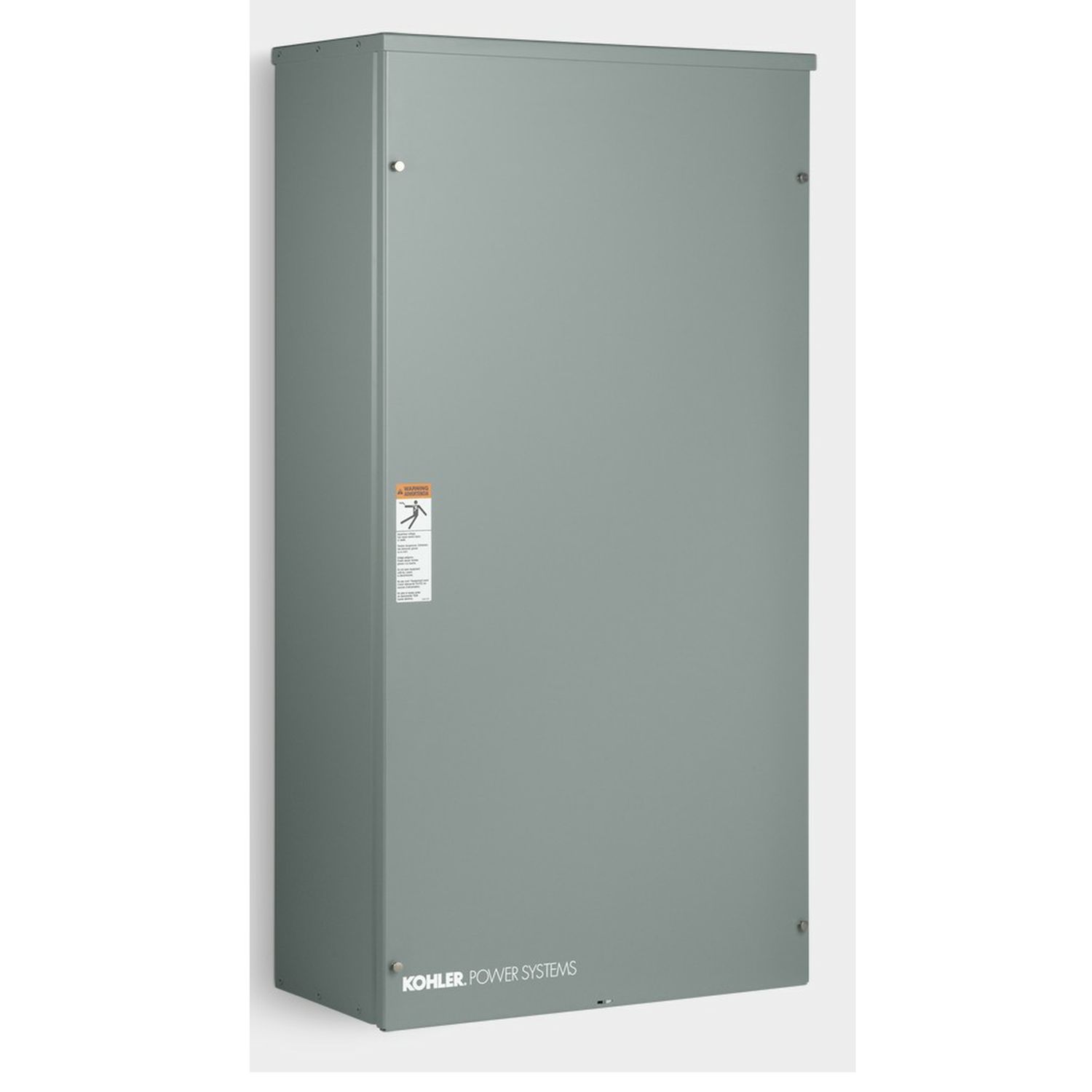

Kohler Automatic Transfer Switch - RDT-CFNC-200ASEQS4
The Kohler RDT-CFNC-200ASE-QS4 is a robust, entry-grade service-entrance ATS that delivers seamless power transitions, advanced diagnostics, and smart generator integration—all wrapped in a durable, weather-resistant enclosure. Whether you’re upgrading your existing setup or specifying new utility systems, it offers peace of mind with Kohler’s proven reliability.
Key Features:
- Automatic Power Transfer — Seamlessly and safely switches between utility and generator power during outages and restores connection when utility power returns.
- Built-In Service Disconnect — Service-entrance rated with integrated utility-side breaker, simplifying installation and eliminating the need for separate disconnect equipment.
- User-Friendly MPAC 500 Microprocessor Controller
- LED status indicators for source availability and fault diagnostics
- Test and exercise buttons
- Fixed time delays for engine start, transfer, and retransfer
- Weekly exercise mode to keep the generator systems ready
- Durable NEMA 3R Aluminum Enclosure — Weather-resistant and corrosion-proof, suitable for both indoor and outdoor installations.
- Generator Compatibility & Load Management
- Compatible with all single-phase Kohler residential and small-business generators
- Optional load-shedding capability available via accessory kit, ensuring your generator can manage critical loads efficiently
- Reliable and Safe Design
- Double-throw, electrically and mechanically interlocked contactors
- Solid neutral configuration (2-pole, 3-wire)
- UL 1008 listed — meeting rigorous safety standards
- Compact and Lightweight — Approximately 26 lbs in a compact footprint (33.8” × 18.6” × 6.4”).
- Warranty Protected — Covered by a 5-year limited warranty or 2,000 operating hours, for added homeowner peace of mind.
Specification
Details
| Model |
RDT‑CFNC‑200ASEQS4 |
| Amp Rating |
200 A |
| Voltage/Phase |
240 V, Single Phase |
| Poles / Wiring |
2‑Pole, 3‑Wire (solid neutral) |
| Enclosure Type |
NEMA 3R Aluminum (Indoor/Outdoor) |
| Controller |
MPAC 500 microprocessor |
| Load Management |
Optional load-shedding with accessory kit |
| Weekly Exercise |
Yes |
| UL Listed |
Yes |
| Warranty |
5-year limited / 2,000 hours |
| Weight |
~26 lbs (12 kg) |
| Dimensions (H×W×D) |
~33.8” × 18.6” × 6.4” (858 mm × 473 mm × 163 mm) |
