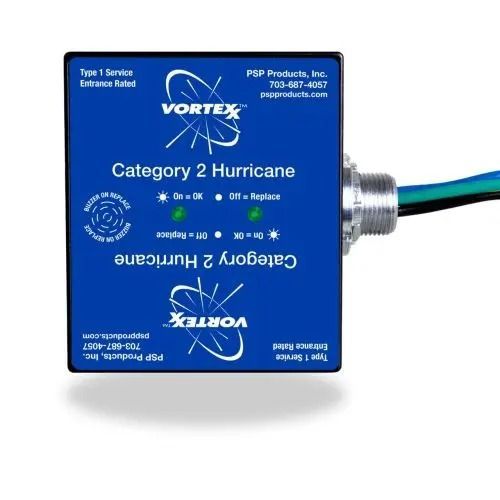

Surge Protection Device HC1C100-06-N

The PSP HC1C100‑06‑N is a Type 1 (service entrance) surge protection device (SPD) designed to safeguard residential and light commercial electrical panels from voltage spikes and surges.

Key Features

• High Surge Capacity: Offers 100 kA per phase maximum discharge current (Iₘₐₓ) with nominal discharge (Iₙ) of 20 kA. Ideal for high-energy surge environments.
• Robust Construction: Encased in a durable cast aluminum housing rated NEMA 6 (IP66) for indoor/outdoor installations.
• Integrated Indication & Alerts: Includes real-time LED status indicators and an audible alarm, with a push-button to silence alerts.
• Lightning-Grade Suppression Technology: Features thermally fused metal oxide varistor (MOV) protection combined with gas-tube technology, and meets UL 96A Lightning Protection Master Label standards.
• Wide Voltage Compatibility: Designed for 120/240 V single-phase (3W+G) systems. MCOV (max continuous operating voltages) include 140 V (L‑N/L‑G), 120 V (N‑G), and 280 V (L‑L).
• High Fault Tolerance: Rated for 200 kAIC (fault current rating) at main panels or sub-panels.
• Compact Design: Comes with a ½-inch NPT adapter and is suitable for flush-mounted panel installations.
• Lifetime Protection Warranty: Includes a lifetime product warranty —and in some cases—an extended $100,000 down-line coverage against damaged electronics.
